Monitoring battery pack charge and discharge throughput accurately remains crucial for modern battery management units. Choosing a suitable automotive current sensor directly influences state-of-charge calculations, thermal safety, and overall vehicle efficiency.
Four primary sensing technologies are used in today’s EV architectures:
Resistive shunts – direct in-line measurement
Open loop Hall sensors – magnetic, on contact
Closed loop Hall sensors – magnetic with ctive nulling
Fluxgate transducers – magnetic with active saturation detection
Engineering teams evaluating high-precision components designed by Hangzhi compare these sensing methods to balance component costs against measurement stability.
Shunt Resistor Technology in Automotive Current Sensors
Resistive shunts measure current by calculating the proportional voltage drop across a calibrated metallic element placed directly in the main power circuit. This direct connection provides high simplicity and low component cost in low-amperage measuring applications. However, placing a physical resistor inline generates continuous ohmic heat under high current loads, causing power dissipation across high-voltage busbars.
Thermal heating alters the physical resistance of shunt alloys, introducing measurement drift during extended power transfers. High-quality shunts can achieve TCR as low as ±5 ppm/°C. They also offer initial accuracy of ±0.1%. But even a 30°C temperature change can cause resistance drift of 0.3% to 0.6%. Because shunts lack intrinsic galvanic isolation, secondary processing electronics require isolated operational amplifiers to prevent high-voltage coupling. These thermal and isolation challenges limit shunt suitability in high-current traction packs across EV mobility applications.
Open-Loop Hall Effect Sensor Fundamentals
Open-loop Hall sensors measure magnetic field strength generated around a primary conductor using a ferromagnetic core and a semiconductor Hall element. Non-contact measurement preserves complete galvanic isolation between high-voltage busbars and low-voltage control circuits. This non-intrusive physical design prevents power loss and isolates sensitive microcontrollers from electrical noise.
Despite low manufacturing costs and compact physical sizes, open-loop configurations suffer from susceptibility to external magnetic interference and zero-point offset drift. Temperature variations inside engine compartments alter semiconductor sensitivity over time, reducing overall measurement accuracy. Vehicle designers often reserve open-loop devices for non-critical auxiliary circuits rather than main battery management platforms.
Closed-Loop Hall Compensation Mechanisms
Closed-loop Hall sensors improve measurement accuracy by feeding a secondary compensation current into a secondary winding around the core. This opposing current generates a magnetic field that cancels the primary flux, keeping the magnetic core at zero net field strength. Measuring the secondary compensation current yields higher linearity and faster response times than open-loop designs.
This closed‑loop architecture delivers accuracy of ±0.2% to ±0.5%. Premium versions have linearity errors below 1 ppm RMS. Offset drift stays under 0.1 ppm/°C. Bandwidth typically ranges from 200 kHz to 1 MHz. Continuous secondary current generation increases operational power consumption and heat dissipation inside the sensor housing. Additionally, magnetic core hysteresis can create zero-offset residual magnetizations after severe overcurrent events. These physical limitations prompt engineers developing demanding EV mobility applications to seek zero-drift alternatives for state-of-health tracking.
Fluxgate Technology for High-Precision Detection
Fluxgate transducers utilize high-permeability magnetic cores driven in and out of saturation by a high-frequency excitation signal. When primary current flows through the aperture, it alters the magnetic saturation symmetry, generating second-harmonic signal outputs proportional to current magnitude. This active modulation mechanism delivers high zero-point stability, low noise, and sub-percent measurement precision.

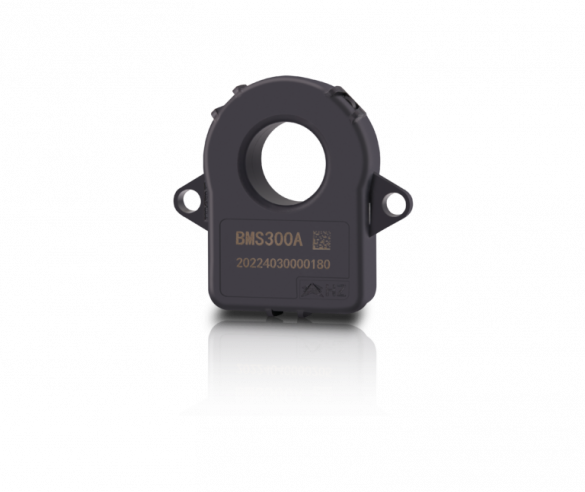

Integrating zero-flux compensation loops prevents magnetic hysteresis while maintaining low temperature drift across broad operating ranges. Multi-point zero-flux units developed by Hangzhi, such as the BMS series transducers, deliver clean signal outputs without requiring manual zero-point adjustments. High measurement stability makes fluxgate hardware ideal for tracking lithium cell degradation over decade-long vehicle lifespans.
Thermal Drift and Zero-Offset Comparison
Evaluating thermal drift parameters clarifies performance differences between resistive, Hall, and fluxgate topologies operating in automotive environments. Temperature swings between -40℃ and 105℃ induce resistance shifts in shunts and gain drift in Hall semiconductors. Uncompensated zero-point drift accumulates over extended driving intervals, corrupting central state-of-charge algorithms.
Fluxgate sensors suppress zero drift to negligible levels through active magnetic core saturation routines. Low offset drift preserves coulomb counting accuracy during low-current parking intervals and prolonged charging cycles. Selecting an advanced automotive current sensor prevents cumulative calculation errors that skew dashboard range projections.
Integration Requirements in Automotive Systems
Automotive integration demands robust electromagnetic shielding, standardized CAN bus interfaces, and high impulse isolation ratings. Deploying an automotive current sensor directly on main junction box busbars requires compact housings that withstand heavy mechanical vibration and thermal cycling. Standardized digital outputs eliminate analog signal noise corruption across long cable harnesses.
Direct digital signal transmission simplifies software integration into central battery management units. Products like the BMS series provide pre-calibrated CAN bus communications that reduce development timelines for vehicle engineers. Robust physical encapsulation guards internal processing components against moisture, dust, and road splash hazards.
Choosing Sensing Architectures for Modern Vehicles
Selecting appropriate sensing technology depends on specific application requirements, target accuracy levels, and system power limits. Shunts and open-loop Hall sensors suit cost-sensitive auxiliary subsystems where moderate drift is acceptable. High-voltage traction packs and fast-charging interfaces require fluxgate transducers to maintain thermal safety and battery health tracking across diverse EV mobility applications.
Engineering teams seeking technical datasheets, CAD models, or custom design support can access specialized measurement options through technical consultation. Consultations with sensor specialists clarify component selection criteria for high-power electric vehicle projects. System builders may also request sample hardware for bench testing via the official sample request channel.
Conclusion
Comparing shunt, Hall, and fluxgate measurement principles highlights distinct trade offs between component cost, thermal drift, and signal precision. Shunts offer low cost and high accuracy at room temperature but suffer from thermal drift and lack of isolation. Open loop Hall sensors provide galvanic isolation at moderate cost but with limited accuracy. Closed loop Hall sensors use active compensation to improve precision. Advanced fluxgate devices take it a step further. Take Hangzhi’s sensors, for example. They offer zero offset stability and sub 0.1% accuracy. That’s the level of precision needed to protect high voltage battery assets over years of service. Technical teams exploring zero flux solutions for upcoming power projects are encouraged to consult detailed hardware specifications from specialized transducer suppliers. Technical teams exploring zero-flux solutions for upcoming power projects are encouraged to Contact us to obtain detailed hardware specifications.
